Ten days have passed since the National Day holiday. The landlord has been sorting out the time-consuming installation records. First light up the previous configuration, so that everyone has a direct feeling ~ ~
It used to be such a light effect that the graphics card could not emit light
Upgraded configuration:
After the Intel i7 6850k and other large ships docked
ASRock X99 WS turns out to be MSI's X99 Gaming7
MSI GTX1070 Night Dragon Original HD7950 dual card crossfire
GALAXY / cool beast DDR4 2133 4G8 blue original red LED light
Sama 750W full module gold power supply ready for subsequent upgrade to 1200W
First horse Ark chassis ready to upgrade to welcome
Seagate 7200 1T 2 Reserved
Plextor M6Pro 128G & M6V 256G Ready to Upgrade to NAME's SSD
Radiator Kyushu Captain FENGSHEN 240 was previously overclocked and frozen black gold version
Configuration resolution:As the main ATX-III open chassis that was first introduced in 2016, it is mainly embodied in an energy-saving, eight-PCI expansion slot that can implement four-card SLI or CF.
However, the most optimistic about the building is that the chassis has lights, or RGB light effects, a variety of light efficiency mode
On the top there are light control buttons and fan adjustment switches.
As a large chassis is generally placed on the ground (foot), I / O interfaces are placed in the upper end of the chassis, which is really convenient
After using the building for a period of time, it was found that the chassis was too large. In fact, the space occupied by nine was quite inconvenient.
As the 2011-v3 i7 CPU, it has always been a symbol of high-end platforms. Compared with the 6800k, the i7 6850k has 40 complete PCIE channels. It is absolutely beneficial for the building of a dual-card or 4 card and SSD with an M.2 interface after the platform of the building. It does not seem that the price definitely has disadvantages. No interest!
On a big U town world ~~
Once upon a time, the building was a Gaming7 X99 with a large MSI. However, the self-check was slow, and the boot was a long time.
Therefore, with painstaking determination to replace ASRock's X99 WS, not only did it boot faster, but the number of cards that could be supported also changed from the original 3 cards to 4 cards.
A lot of hard drives, Plextor + Seagate's classic combination. SSDs can be connected separately, and HDDs can be built as Raid, which means that speed can be improved and safety can be taken into consideration.
Details of the hard disk is very good, keep it and continue to use.
The chassis has always been able to install, although it is only said that the tower, but it does have the strength of the tower! , Replace the original air-cooled cooling, water-cooled!
At the same time, Yingchao’s memory was installed. GALAXY’s memory also provided lighting kits. It was equipped with 4 blue cartridges. !
Connected to the water, this captain 240, the water cooling liquid is rather special, not the traditional red, or the white version of pure white; the opposite is true black!

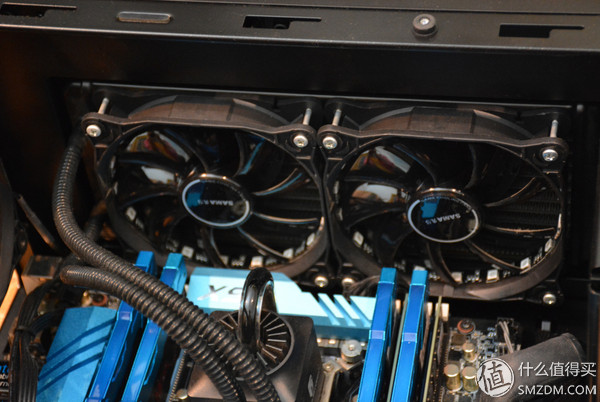

Kyushu Fengshen Captain 240, after putting in the top, you can remove the original fan, only use the fan on the top of the chassis, the impact received is not support PWM intelligent speed, but you can manually adjust the fan speed, chassis support Two-speed fan control ~ This has its own advantages and disadvantages, everyone said?
ASRock X99WS has 10 PCIs in addition to 6 PCIEs.
I only received four hard drives here.
The power supply is a 750W gold power supply; this is also retained before, taking into account the 1070's power consumption, and did not intend to put on the current 1200W power supply ~ ~
The motherboard supports multiple graphics cards on multiple PCIe power interfaces, one on the first PCI slot and the other on the bottom of the motherboard.
Each power supply interface can achieve 150W power consumption. The nominal power consumption of this 1070 graphics card is 150W.
The surrounding accessories are installed, the mice dump the sawdust, and the big head is behind! Began to introduce graphics cards
Card test articles:
Public version parameters
MSI's 1070 graphics card's frequency is still quite high, compared to the official version of the official provided by the British Wei Da increased 101--124 frequency.
Currently in the fifth place of the video ladder diagram, after TITAN X is released, it will take a step back~
Three 9cm fans
Also with a metal back plate, and designed a diversion hole ~ ~
The gold finger section explains that it is a new card, which is very important.
Interfaces 3 DP, one HDMI, one DVI, can output 5 display devices at the same time.
Remove the backplane, look at the back of the PCB
The electronic components at the core seem to have "nuclear" power.
8pin+6pin power supply interface
8+2 phase power supply
I have a poor luck with this card and am stuck with the visible particles of magnesium. It is said that there will be a splash screen and a black screen phenomenon. However, the new driver has already been fixed.
Other parts close-up.
5 heat pipe radiator, also plated nickel, anti-oxidation! The fan is silent ~~
The total weight of this card is 1127g. The following is the weight of each part. ~~ In fact, the PCB is not heavy.
Installed the system, look at the overall configuration environment ~~
Lu masters ran a sub-~~ hard drive for å•¥ also dragged his hind legs, could not figure out ah, it seems that the hard disk for M.2 is imperative! ! !
Graphics Card Driver Selects the Latest, 373.06, Microsoft Certified on October 6
Select all when installing, complete installation mode! !
CUDA and PHysX are all installed, nothing can run a parallel operation ~ ~
3DMARK11 running points:
X mode 8435 ah ~ ~ I do not want to say you ~ ~ we all know ~ ~
The 17 points of the P model is slightly lower than that of a 6700k+1070 value in Zhang Daxiao. The interested buddies can go and look at the post. It is said that the monitor is much more controversial.
Game test:
"Tomb Raider 9" is no longer unfamiliar to everyone. Once for AMD's exclusive "Hai Fei Si" effect, now NVIDIA has been able to equalize with it, sitting half of the country. In the game, the vertical synchronization is turned off at 1080P and 2K resolutions, and the effects are set to the highest. Let's take a look at the extent to which this 1070 Night Dragon can reach my X99 platform.
The average frame rate under 1080P is: 134.6; the average frame rate of 1440P is: 93.6
"Wizard 3: Wild Hunting" uses a custom RedEngine 3 game engine for the next generation of game consoles. CD Projekt RED also said that customizing this game engine really makes the existing RPG type: one that emphasizes the storyline, but limits the game world. The other has a powerful and rich game world, but simplifies the integration of the two types of story, and also achieves the effect of making non-linear narrative based on player selection more realistic and credible. However, this game is really a 40G file occupying the hard disk space, so after the play of the building is like deleting ~ ~ to see the full effect of this game after the full effect, GTX1070 Night Dragon's performance:
The average frame rate under 1080P is: 72.3; the average frame rate of 1440P is: 54.6
The Blockade of the whole territory is an open multiplayer online game played by a third person shooter in the open world. This approach reminds me of the "Battlefield" series, so the game was tested, and the "Battlefield" series will not be repeated. The game is set in the United States after the outbreak of the plague. Players as a unit of the "blockade" plan are looking for a chance in the United States after "Black Friday." The same is the full effect test in 1K and 2K modes:
The average frame rate under 1080P: 77.6; the average frame rate of 1440P: 56.1
"Singularity Ashes" is a real-time strategy game created by Stardock. The game was built using the Nitrous engine of Oxide Games. The background was set in the distant future. At that time, human beings completely existed in ideology. People had already mastered the power of God. But humans find themselves in a war. The enemy is an ideological AI called "Haalee" that attempts to overthrow the dominance of mankind in the universe. This game is also the current DX12 masterpiece, can really test the DX12 performance of the graphics card:
The average frame rate under 1080P is: 75.7; the average frame rate of 1440P is: 52.7
Tomb Raider: Rise is a cross-platform series of action games distributed by Square Enix. Tomb Raider: Rise is about how Laura continued her adventure after becoming a strong man. The "rise" itself also supports DX12, you can test the ultimate performance of the graphics card under DX12, special effects open to very high, walk ~ ~
The average frame rate under 1080P is: 104.8; the average frame rate of 1440P is: 67.4
Overall, the GTX1070 demonstrated its strength on this platform, while at the same time being quite satisfactory in terms of temperature control and power consumption:
Standby standby: 69W graphics card loaded: 246W
Temperature: The graphics card's standby temperature is only 30 degrees (24 degrees at room temperature). When playing games, it is basically around 56 degrees, but it is 70 degrees at full load.
The new process really brought about a surprising improvement in power consumption control.
RGB Lighting Effects:As a set of machines with RGB highlights, there must be light.
Then there is light, in fact, the effect of 240 breathing lights for Captain Kyushu fan is still very dazzling, but under the effect of RGB internal lighting, it is a bit not very prominent. However, as the effect of glass pipes, there are some green ones that are a little red.
1070 graphics "DUKE" light
This small software MYSTIC LIGHT comes with the video card installation CD, and now the official website has not been downloaded and provided. In fact, the functions and the light control software of the MSI Gaming series are similar, not enough this is put forward separately, not integrated in a Big software.
The keyboard and mouse are also RGB-colored and also support a variety of lighting effects
Red and green color theme
Beer green theme
This time, the installation shows are here, and they also plan the future aspects of this configuration to be improved. The partners with ideas and suggestions can reply and communicate together! ! !
Extra Episode: Tossing is endless, and finally made a God machine, and everyone together! ! !
