**Foreword**
With the rapid growth in vehicle ownership, there is a growing demand for high-quality spare parts, skilled technicians, and professional automotive maintenance services. As the auto repair market expands, enterprises are increasingly looking for innovative solutions to meet this demand. This has led to the development of car anatomical models in China, which are becoming an essential tool in both education and training. These models provide a detailed visual representation of internal engine components, helping students and professionals better understand the mechanical and electronic systems of modern vehicles.
The physical car anatomical model is constructed using the original engine from a customer-specified model. By disassembling the engine, the internal structure and relative positions of all major components become clearly visible. Key parts that can be revealed include the cylinder, piston, camshaft, gears, intake and exhaust valves, spark plugs, fuel injectors, intake and exhaust manifolds, generator, oil pump, water pump with temperature control, and throttle body, among others.
**One. Configuration:**
The model includes a complete vehicle (engine, chassis, electrical system), three-phase motor, drive belt, reducer, safety shield, and more.
**Two. Main Technical Parameters:**
1. Major components such as the engine, transmission, steering gear, and drive axle are processed on-site to demonstrate the internal and external structures of key systems.
2. High-precision machining is applied to mechanical sections, with cut surfaces painted in different colors to enhance visibility and understanding.
3. A three-phase motor drives the reducer, which in turn rotates the engine crankshaft at low speed, simulating the entire power transmission process from the engine to the wheels.
4. A safety shield is installed on the drive section to ensure safe operation.
The car’s physical model is color-coded to highlight its structural layers, making it easier to grasp complex mechanical relationships.

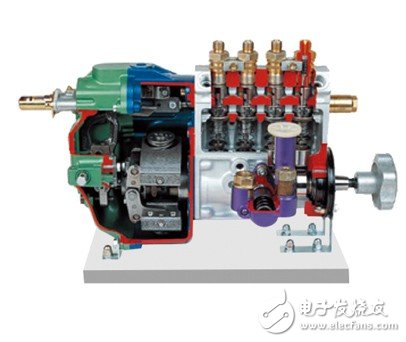

Centrifugal control dispensing jet pump anatomical model

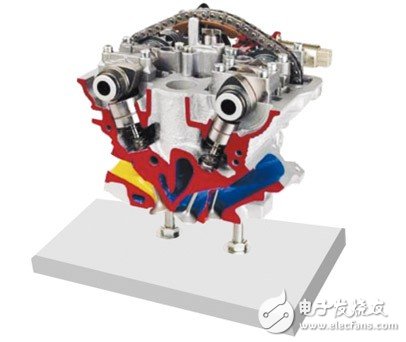

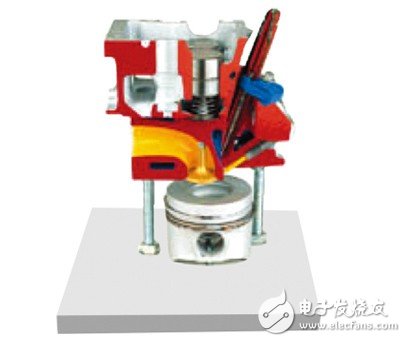

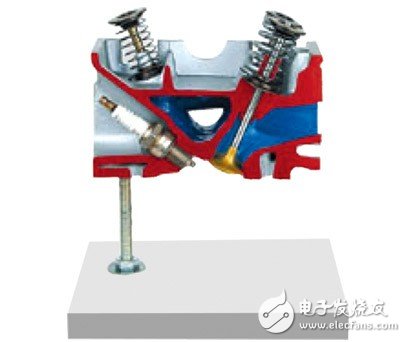

Cylinder head anatomical model
Cylinder head anatomical model

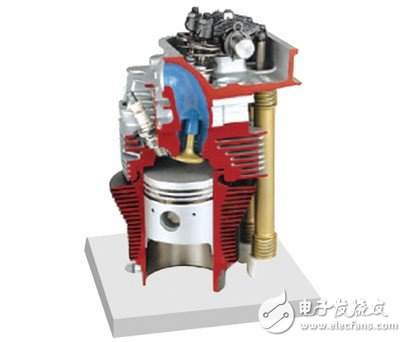

Cylinder and cylinder anatomical model with camshaft

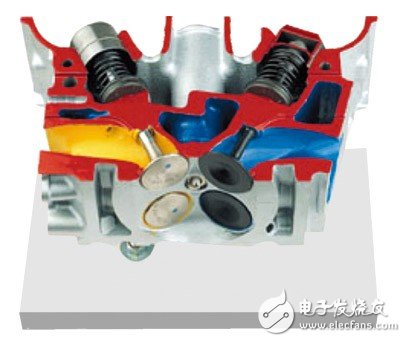

Audi 5 valve cylinder head anatomical model
Anatomical model of Audi 5 valve with camshaft adjustment device

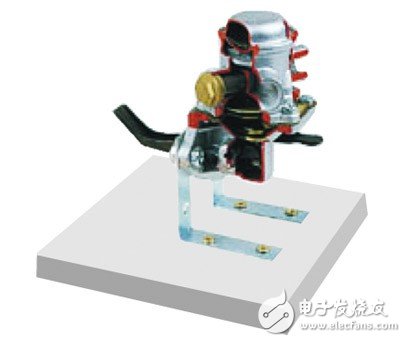

Mechanical fuel pump anatomical model

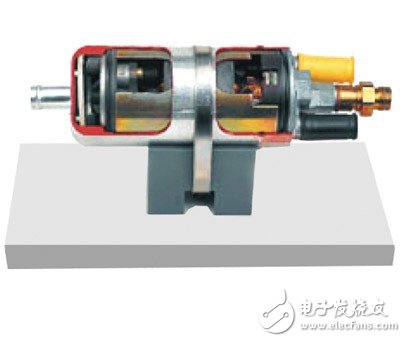

Electronically controlled fuel pump anatomical model

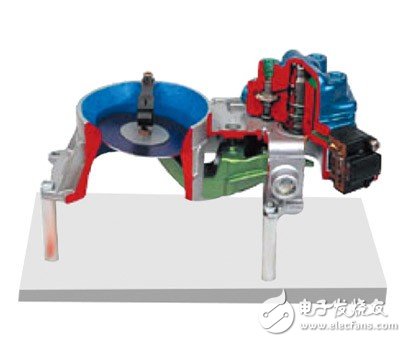

Anatomical model of oil and gas mixing control device
Air flow anatomical model

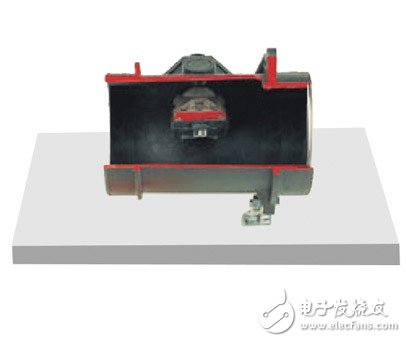

Thermal membrane air flow anatomical model
Platinum thermal air flowmeter anatomical model

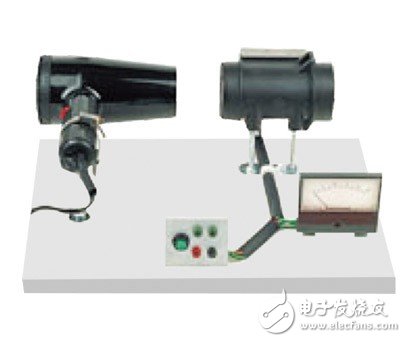

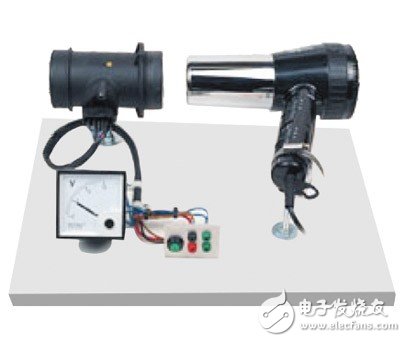

Air flow meter function model
Hot film air flow meter function model

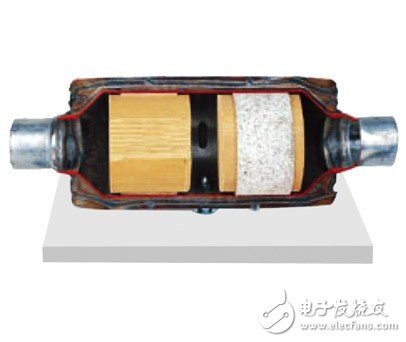

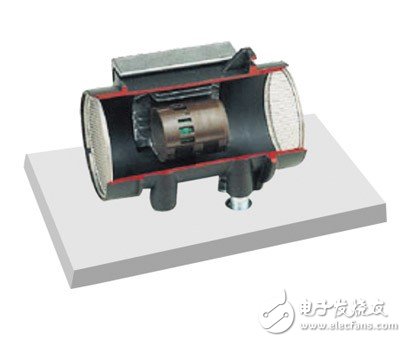

Ternary purifier anatomical model

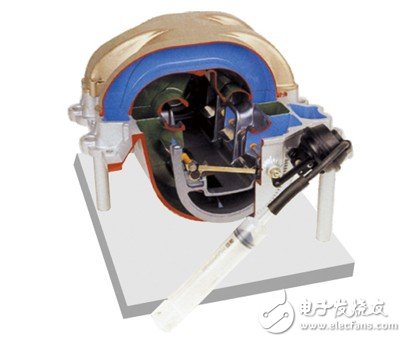

Throttle anatomical model

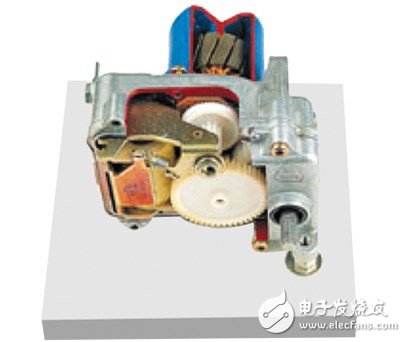

Cruise control starter anatomical model
Inductive switch system anatomical model
Direct injection engine cylinder head anatomical model

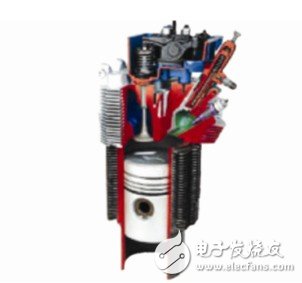

Diesel engine cylinder anatomical model

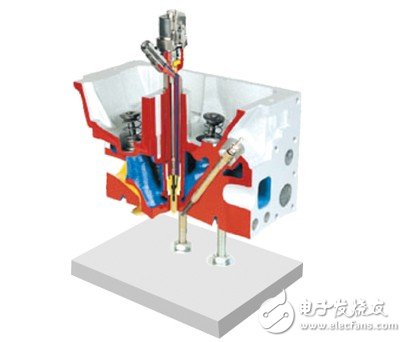

Anatomical model of cylinder head for four-valve direct injection diesel engine

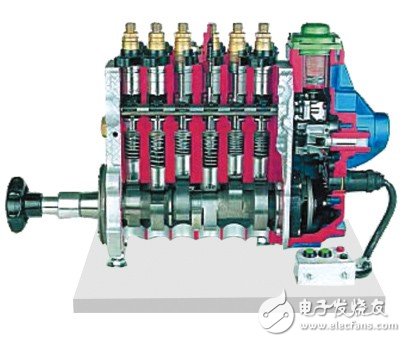

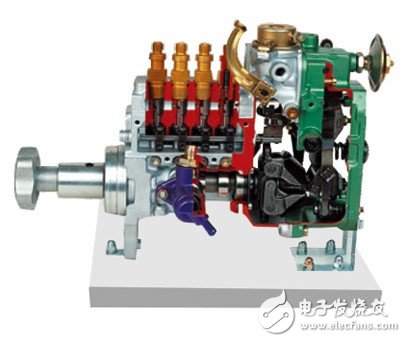

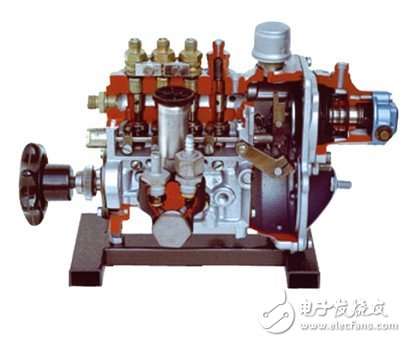

Inline jet pump anatomical model (RSF)

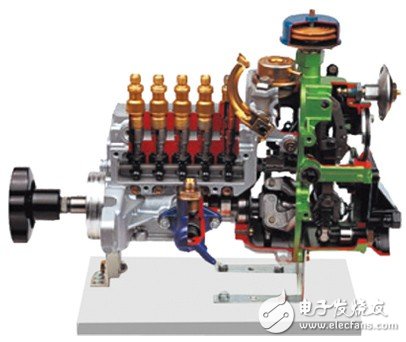

Inline jet pump anatomical model (RQV)
Vacuum controlled jet pump anatomical model

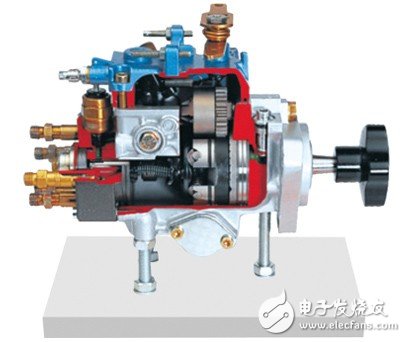

Centrifugal control jet pump anatomical model
Electric control slide valve control anatomical model of fuel injection pump

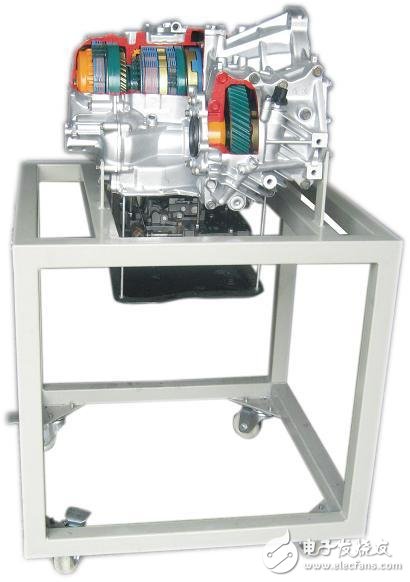

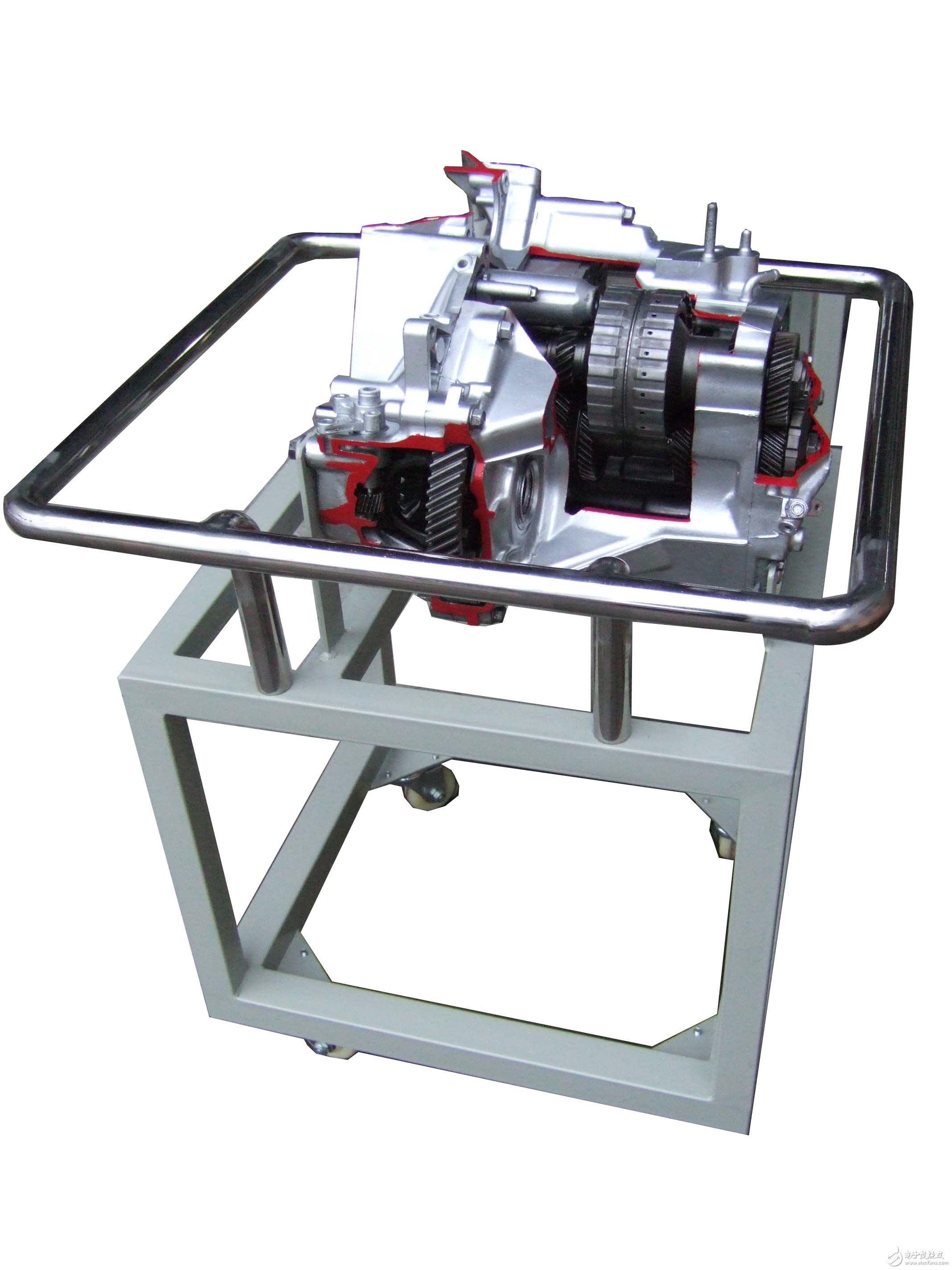

ES300 automatic transmission anatomy display stand
Honda automatic transmission anatomy display stand
